Product Introduction
Product Introduction:

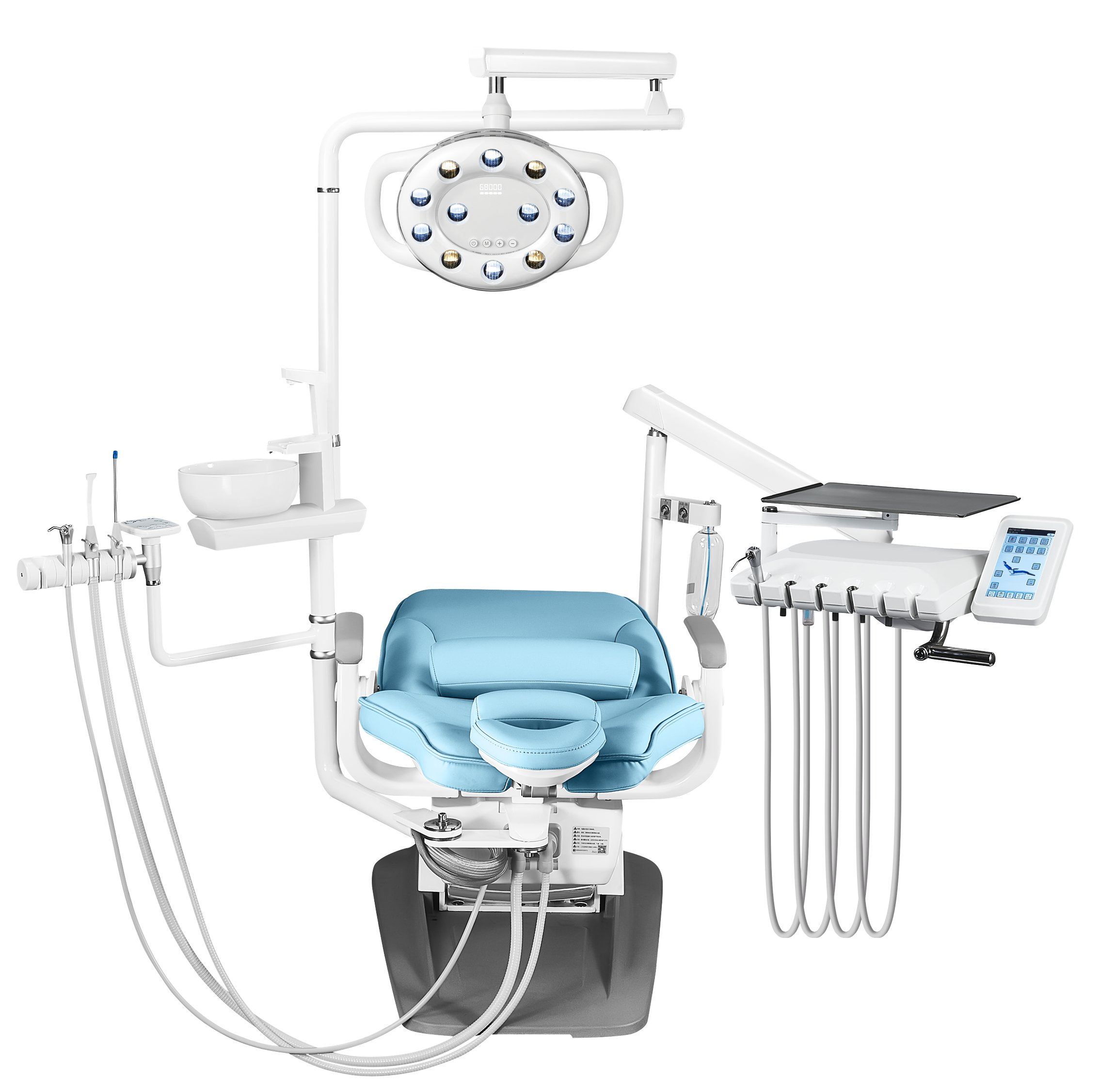

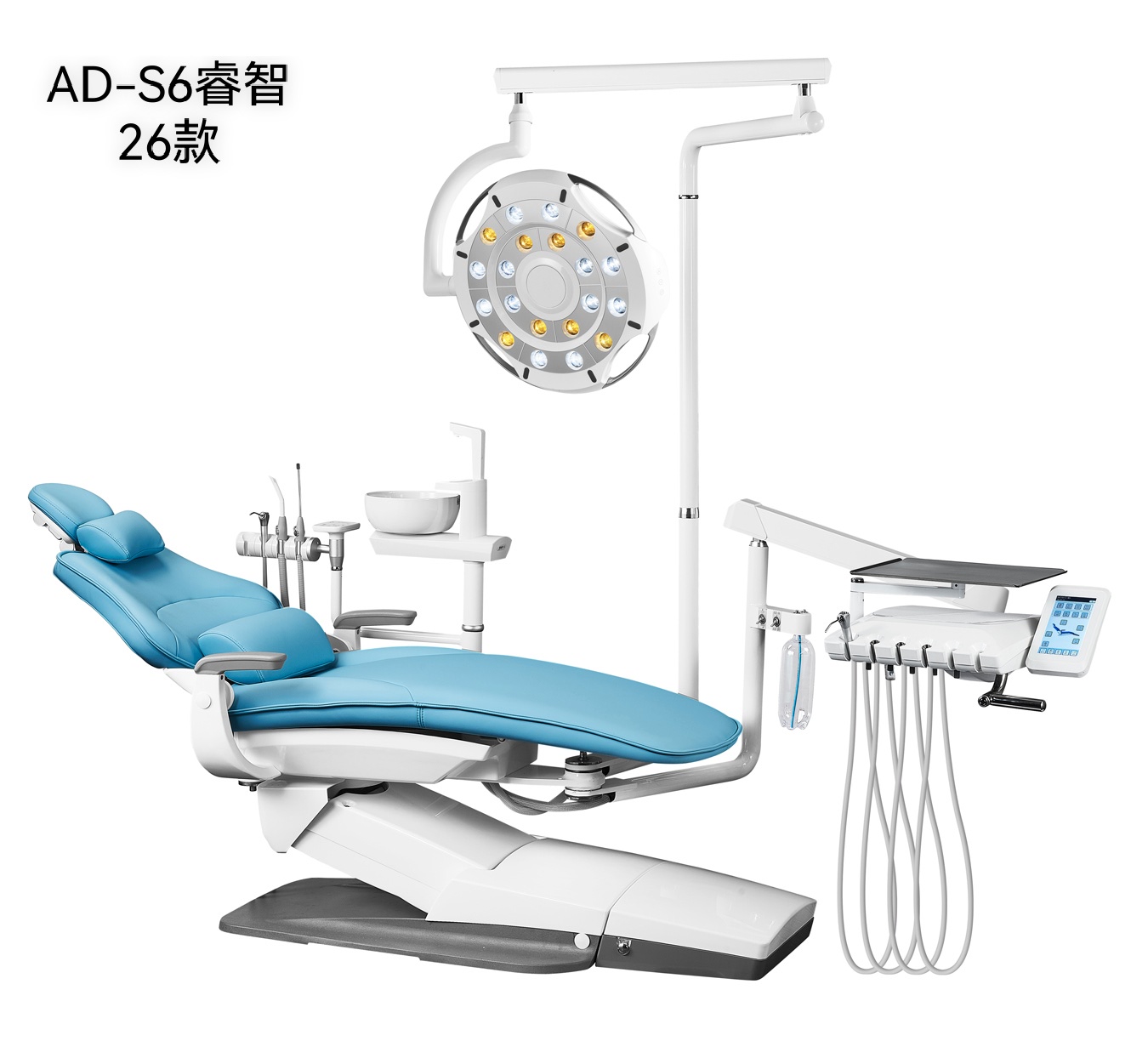

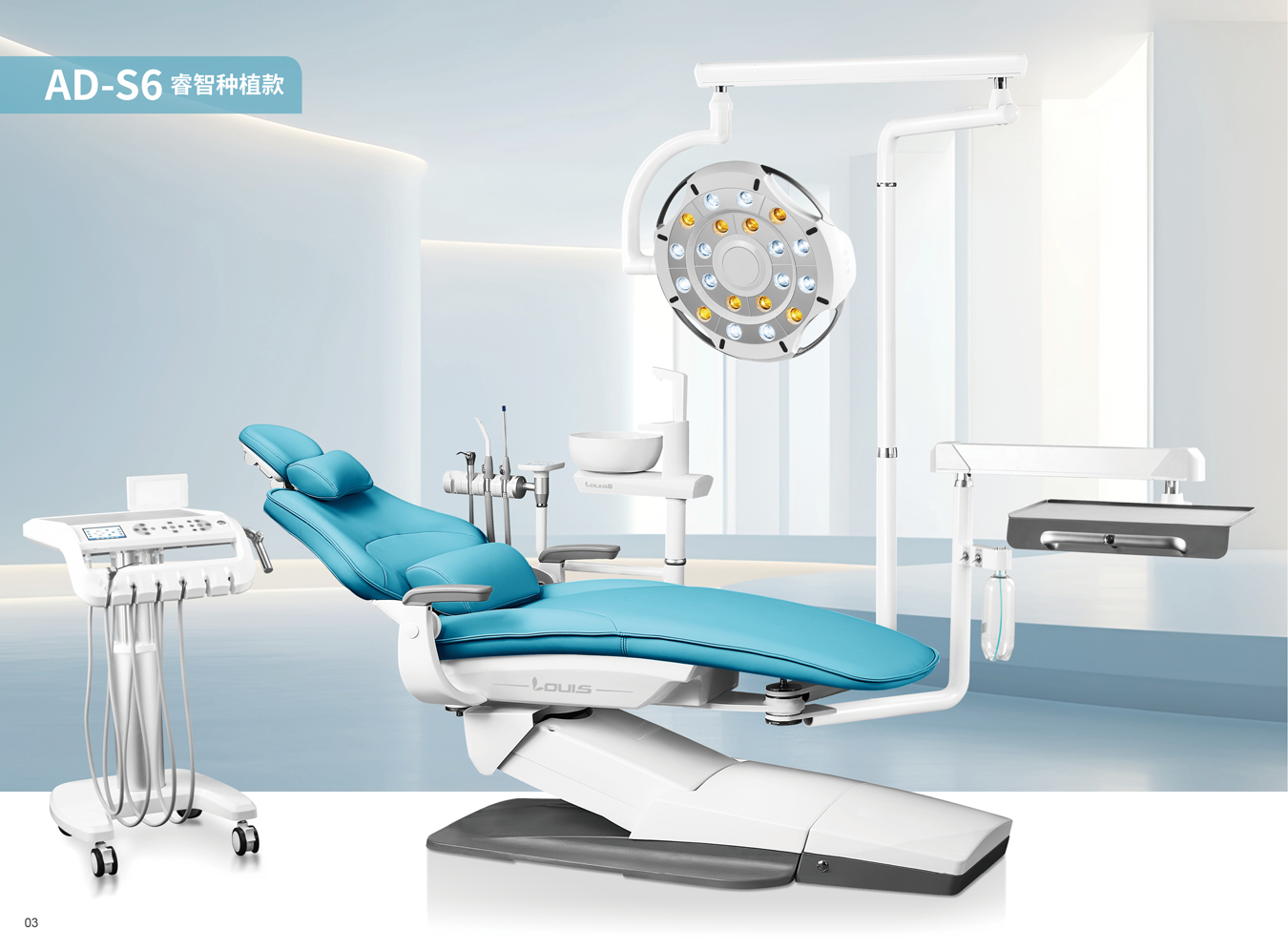

AD-S6 (25/26) model, as a dental chair based on the 3rd generation all-aluminum chair frame with linkage compensation, is equipped with a brand-new 7-inch medical LCD screen control system with 9 chair position memory, and is also available as a doctor's chair and a nurse's chair. The equipment adopts a double-layer instrument tray (with a 180° rotation function), a reusable high-temperature sterilized luxury silicone pad and stainless steel handles. The wide, comfortable and skin-friendly imported leather seats, along with lumbar and headrests, further reflect the comfort requirements for patients. The luxury dual-color 12-hole / 20-hole LED shadowless oral lamp can achieve manual and sensor bidirectional control functions (with digital display function), meeting the needs of daily treatment and surgical use. It has a freely adjustable light source to achieve anti-curing function, with an illuminance of 15000Lux- 6000Lux and a color temperature of 4000K-5300K. The whole machine is made of a large amount of die-cast aluminum material. The use of aluminum-structured chairs makes the product more durable and long-lasting. The hidden form side box design enables the release of six-handed operation space. The realization of the left and right hand operation functions is simple and fast, making it more practical in terms of product usage requirements.
3
Product Parameters
| 一、Factory Configuration | ||
| No. | QTY | Name |
| 1 | 1set | All-new third-generation linkage compensation electric dental chair |
| 2 | 2pcs | Imported DC silent motor 8000N+4000N |
| 3 | 2pcs | Imported Solenoid Valve |
| 4 | 2pcs | Three-way Syringe (Cold/Hot) |
| 5 | 1set | LCD screen main control system |
| 6 | 1set | Saliva Suction System |
| 7 | 1set | Purified Water System |
| 8 | 1pc | LED film viewing light (built-in) |
| 9 | 1set | Ultra-fine Skin-friendly Leather Cushion + Lumbar and Headrest cushion |
| 10 | 1 set | Luxury 044 Doctor's Chair + Luxury 026 Nurse's Chair |
| 11 | 1set | Flushing and water supply systems |
| 12 | 1set | Luxury 20-bead LED Shadowless Oral Lamp |
| 13 | 1pc | Replaceable silicone anti-fouling cover for sterilized instrument trays |
| 14 | 1pc | F02 Stainless Steel Six-in-One Multifunctional Foot Control |
| 15 | 1set | Luxury cast aluminum one-handed control multi-functional headrest bracket |
| 16 | 1set | Detachable sterilizable ceramic spittoon |
| 17 | 1 set | Linkage Compensation Chair Position Control Structure |
| 18 | 1 set | German Imported Water and Air Pipelines |
| 19 | 1 pcs | Stainless Steel Foot Pedal Tube |
| 20 | 1set | Integrated 6-position Hanger Assembly |
| 21 | 1 set | Stainless steel handle bracket |
| 22 | 1 set | Luxury 7-inch LCD screen control |
| 23 | 1 set | Luxury cast aluminum base, backrest, bracket, base box, armrests, etc. |
| 二、packing parameter | ||
| A1 Star Shine 26 (Standard Configuration)： | ||
| Export Middle carton Dimensions: | 1、With legs 142X110X120CM | 2、Without legs 142X110X110CM |
| Export Middle carton N.W: | 1、With legs 66.5 KG | 2、Without legs 54.2KG |
| Standard product N.W： 197 KG | Implant chair N.W： 224 KG | 019 Doctor stool: 9.5KG Nurse stool 7.7 KG |
| Middle cartons G.W（With legs）： | 281 KG | Middle cartons G.W（Without legs）： 269 KG |
| Implant type Middle cartons G.W（With legs）： | 306 KG | mplant type Middle cartons G.W（Without legs）： 295 KG |
4
Product features and detailed introduction

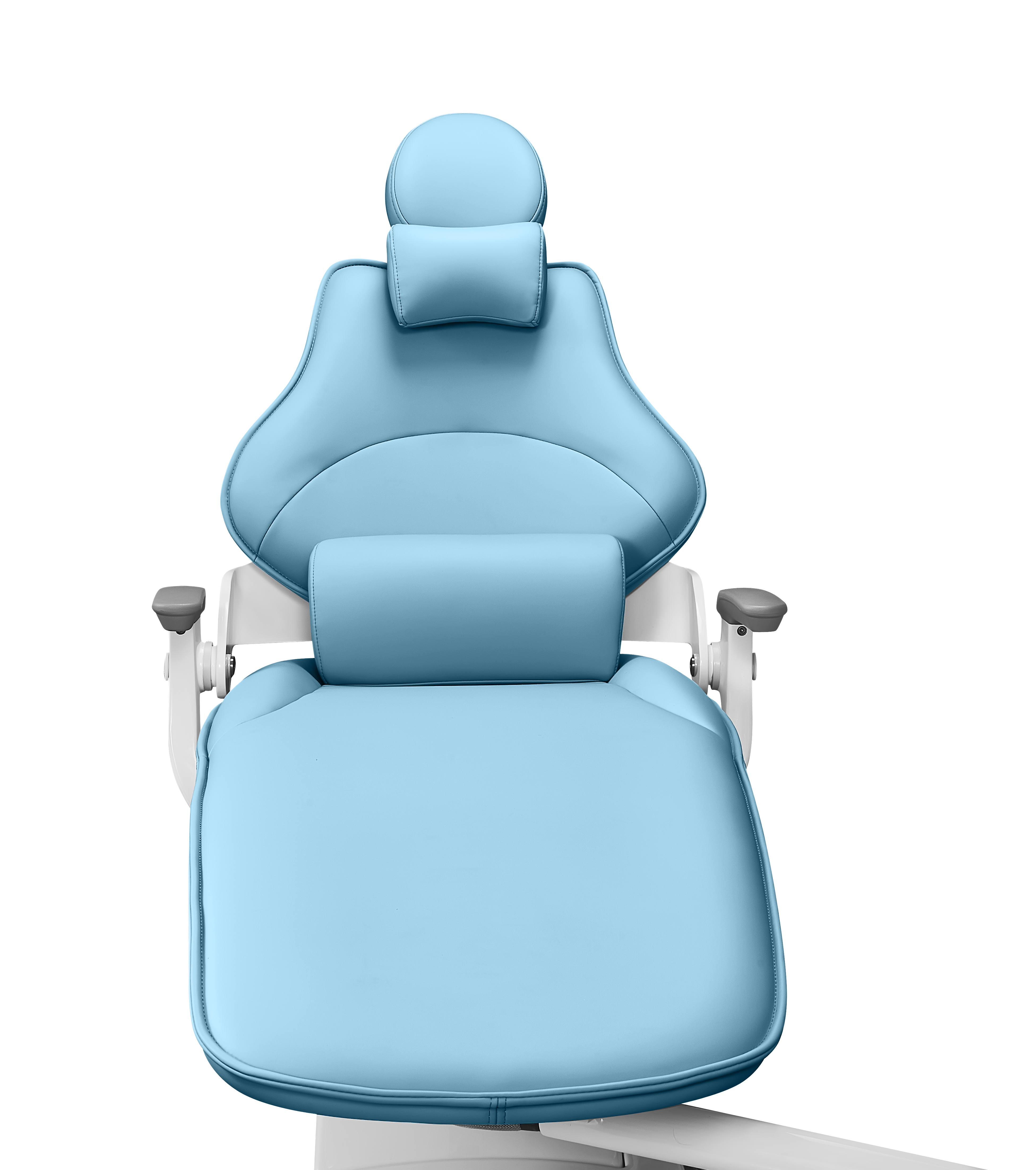

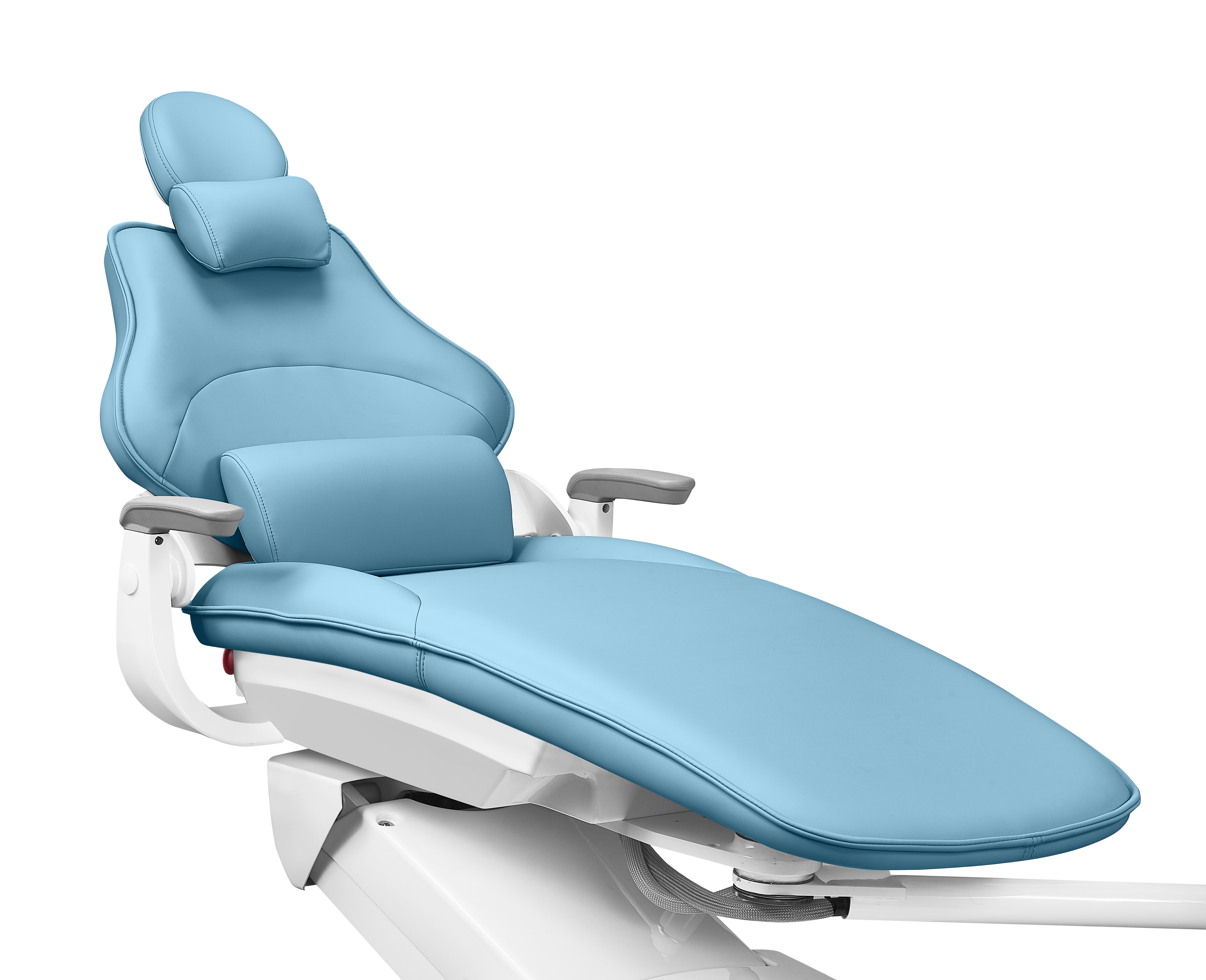

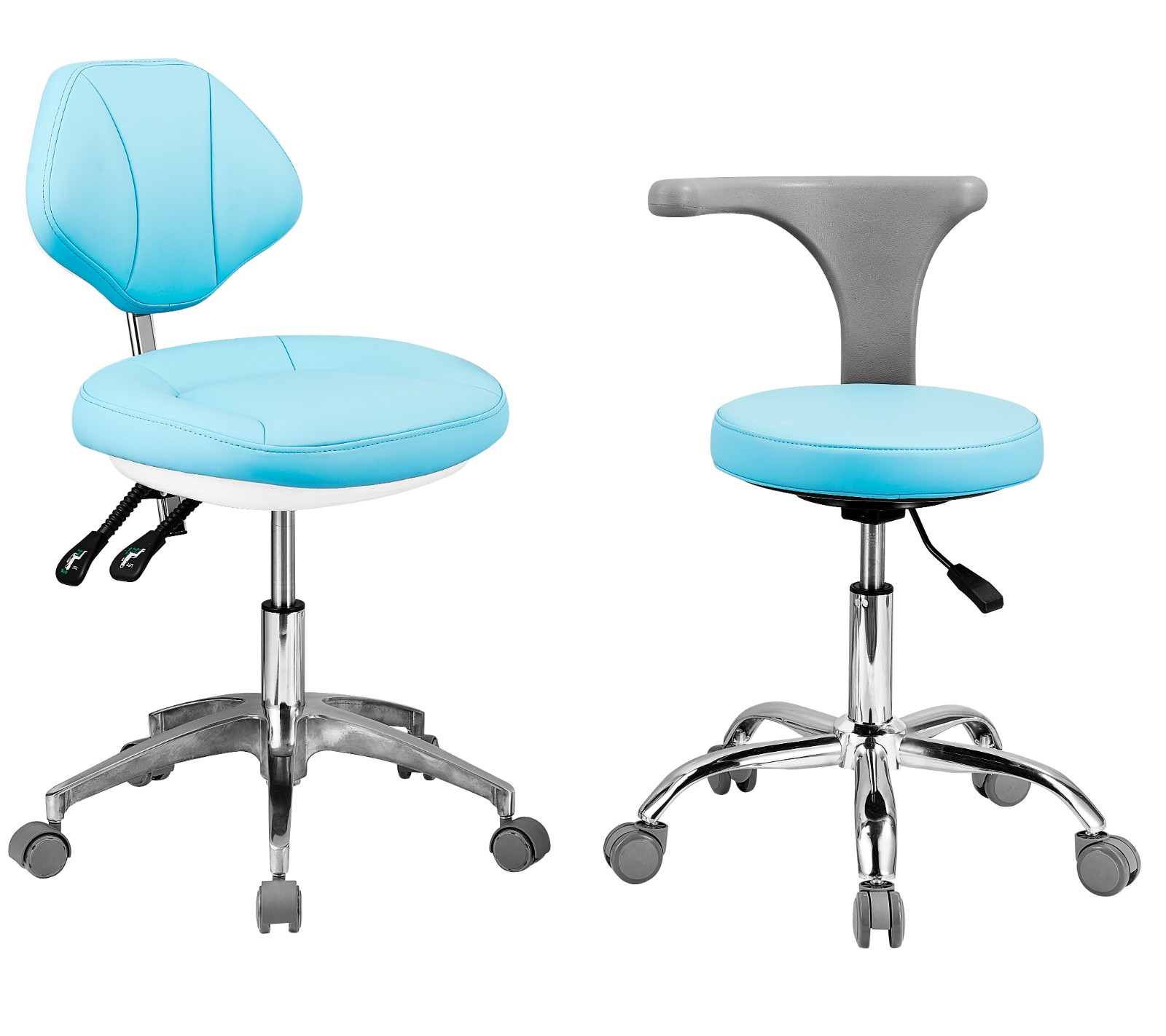

The leather cushion of the dental chair is made of imported skin-friendly leather；The workmanship uses a sewn process of foam sponge and memory foam. It is also equipped with a lumbar pillow and a headrest, providing better overall comfort；The product is standardly equipped with a luxury doctor's chair (cast aluminum frame) and a nurse's chair. The dual-chair configuration meets the usage requirements for treatment.

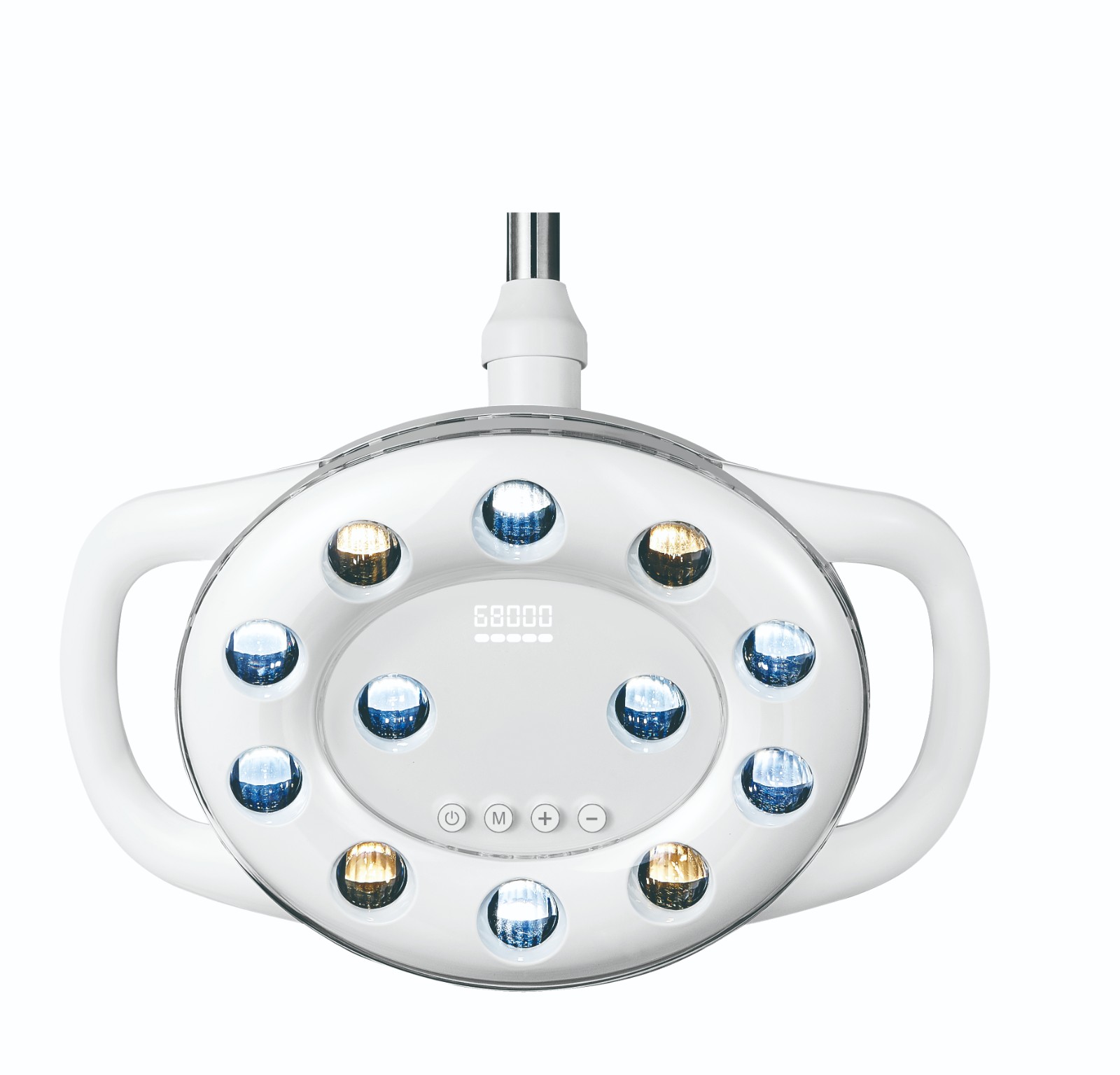

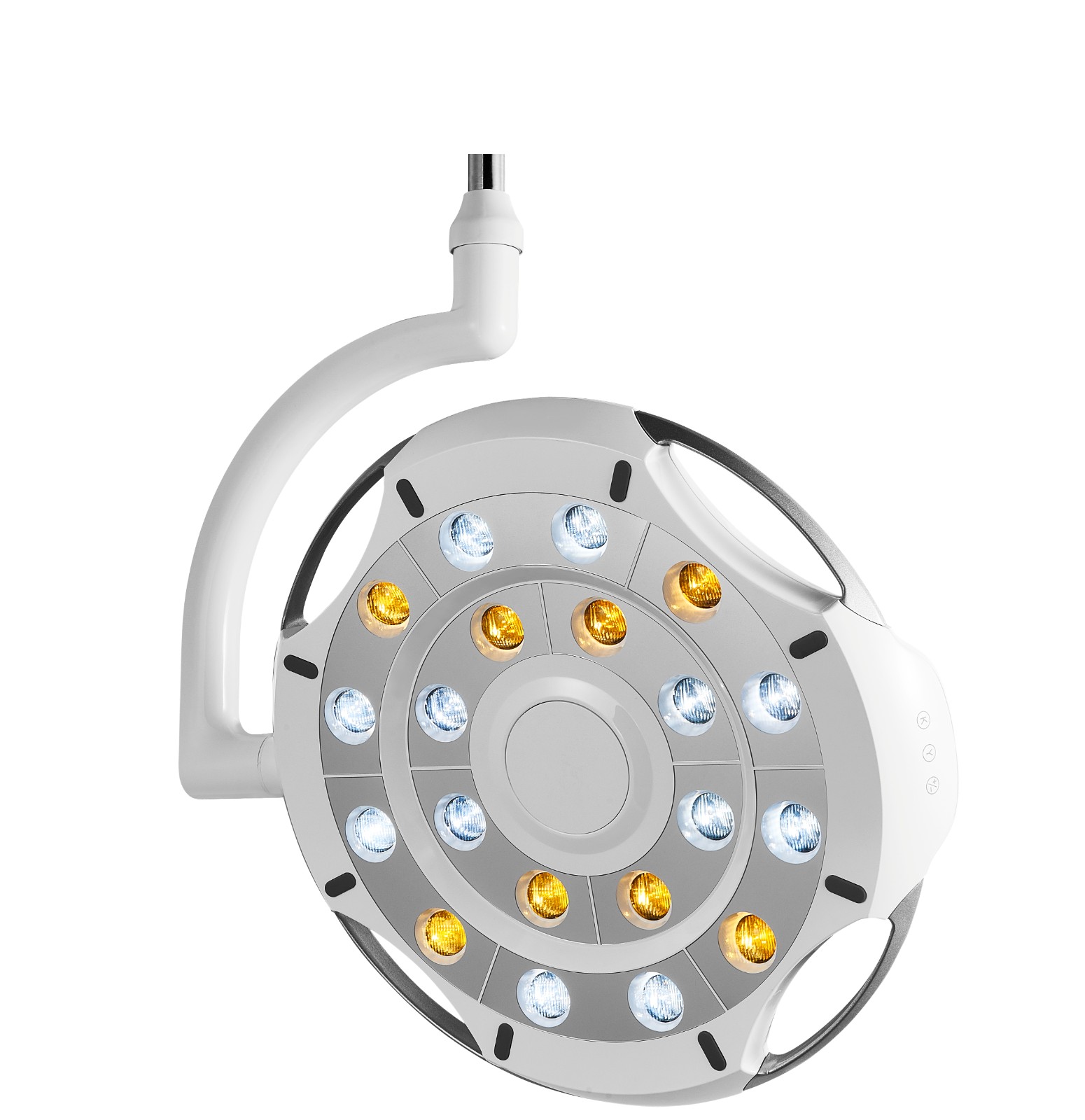

The oral lamp is equipped with a dual-color twelve-hole small/twenty-hole panoramic LED shadowless lamp, which can be used for both surgical and general treatments. The manual and induction bidirectional control function is equipped with digital display and touch key functions. It features freely adjustable light source and anti-curing function. The illuminance range is 8000Lux- 8000Lux /13000Lux- 12000Lux, and the color temperature range is 3300K-5700K/4500K-8000K.

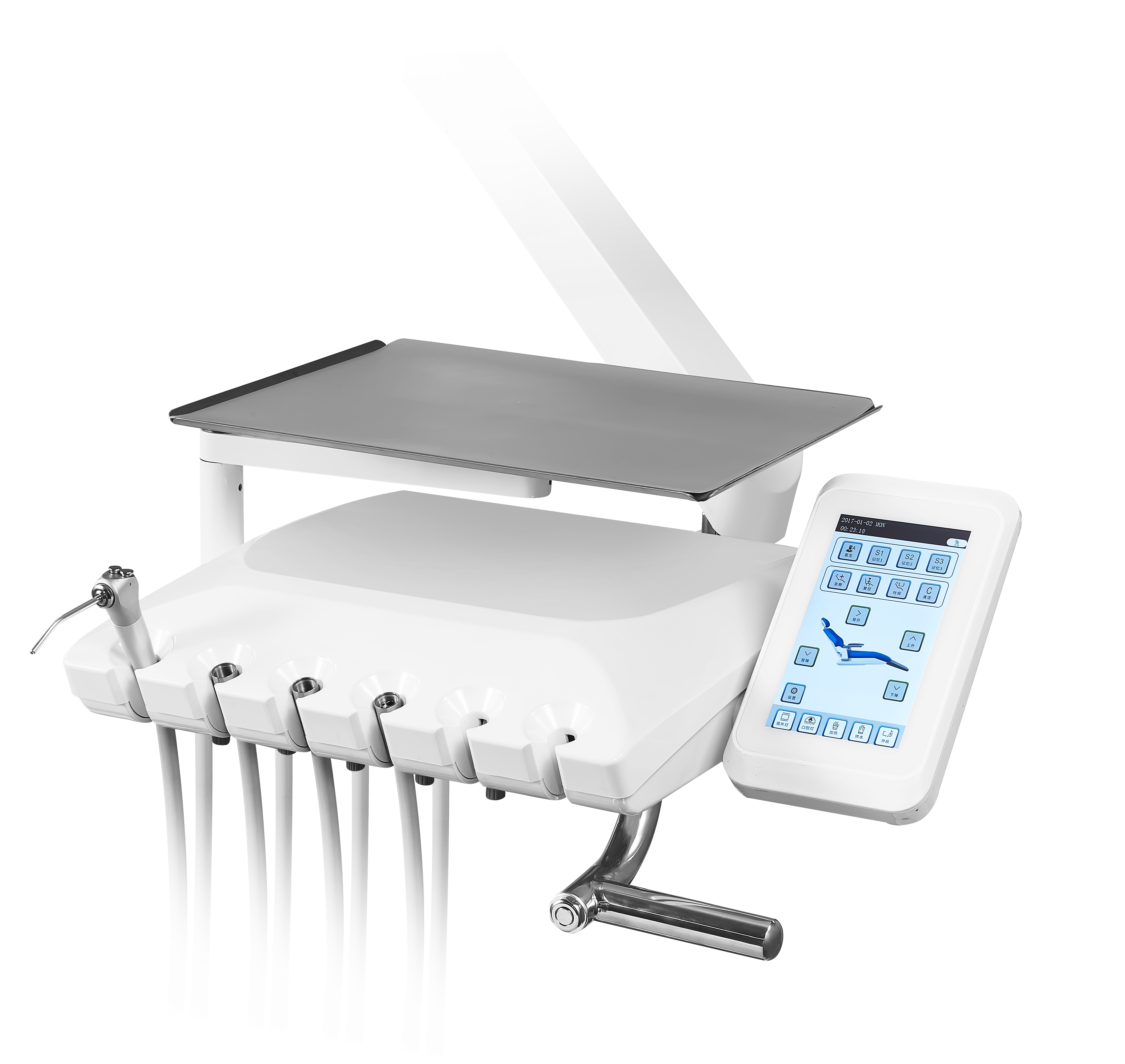

The main control console adopts an top-mounted instrument tray with a stainless steel tray, an aluminum bracket (the tray can rotate 180°), and a high-temperature sterilized silicone pad. It is designed with a 7-inch touch LCD screen control system specifically for medical use and a stainless steel handle bracket. The pipeline layout is neat and beautiful.

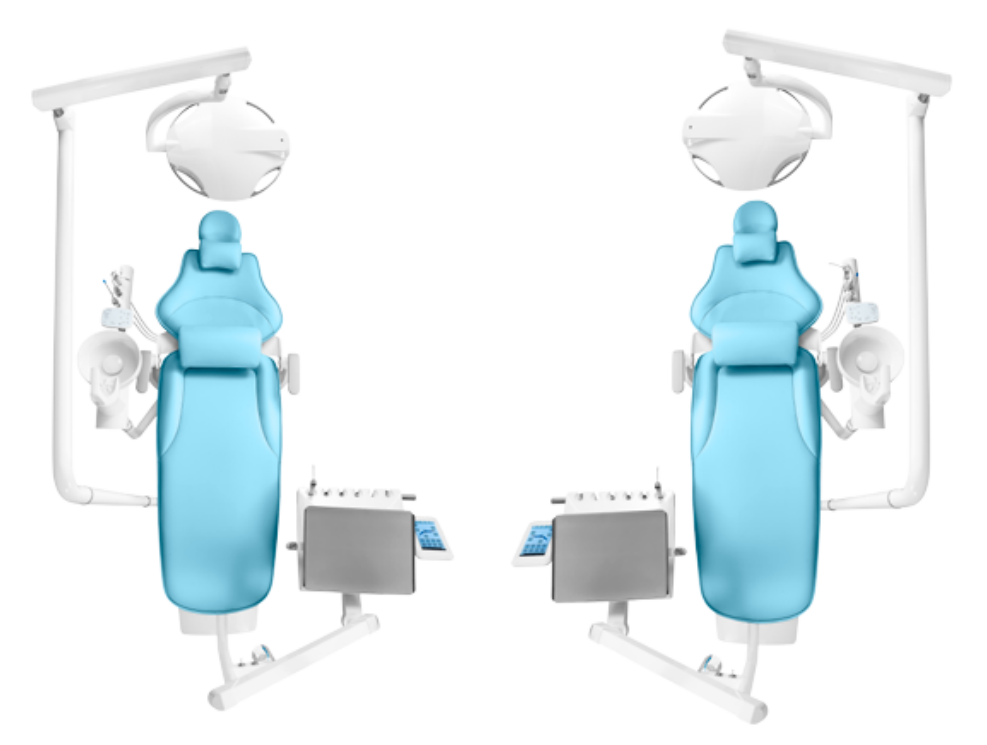

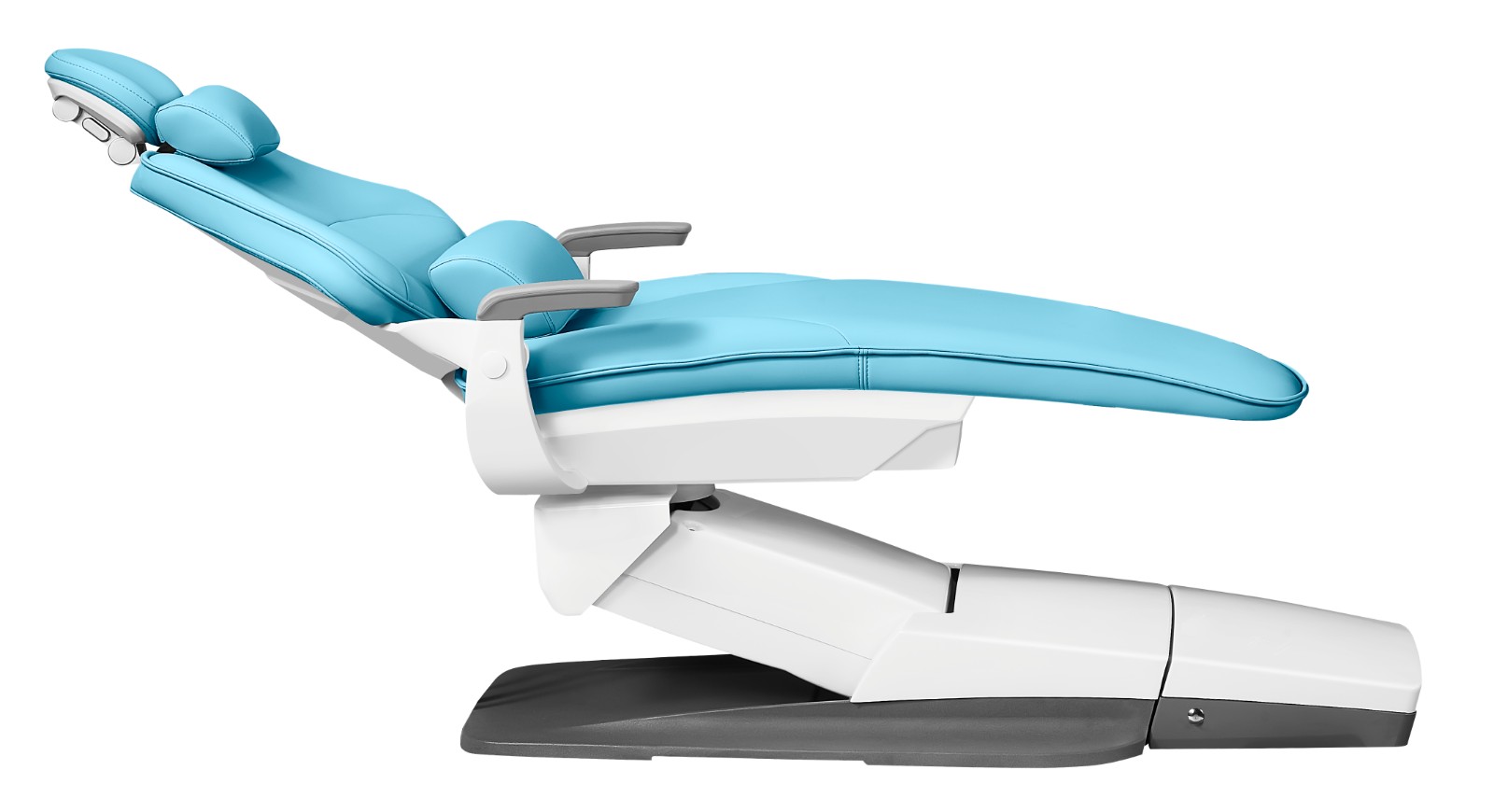

The left and right interchangeable operation architecture
The dental chair supports left and right-hand interchangeable operation, fully considering the operating habits of
different dentists, making the treatment process smoother.

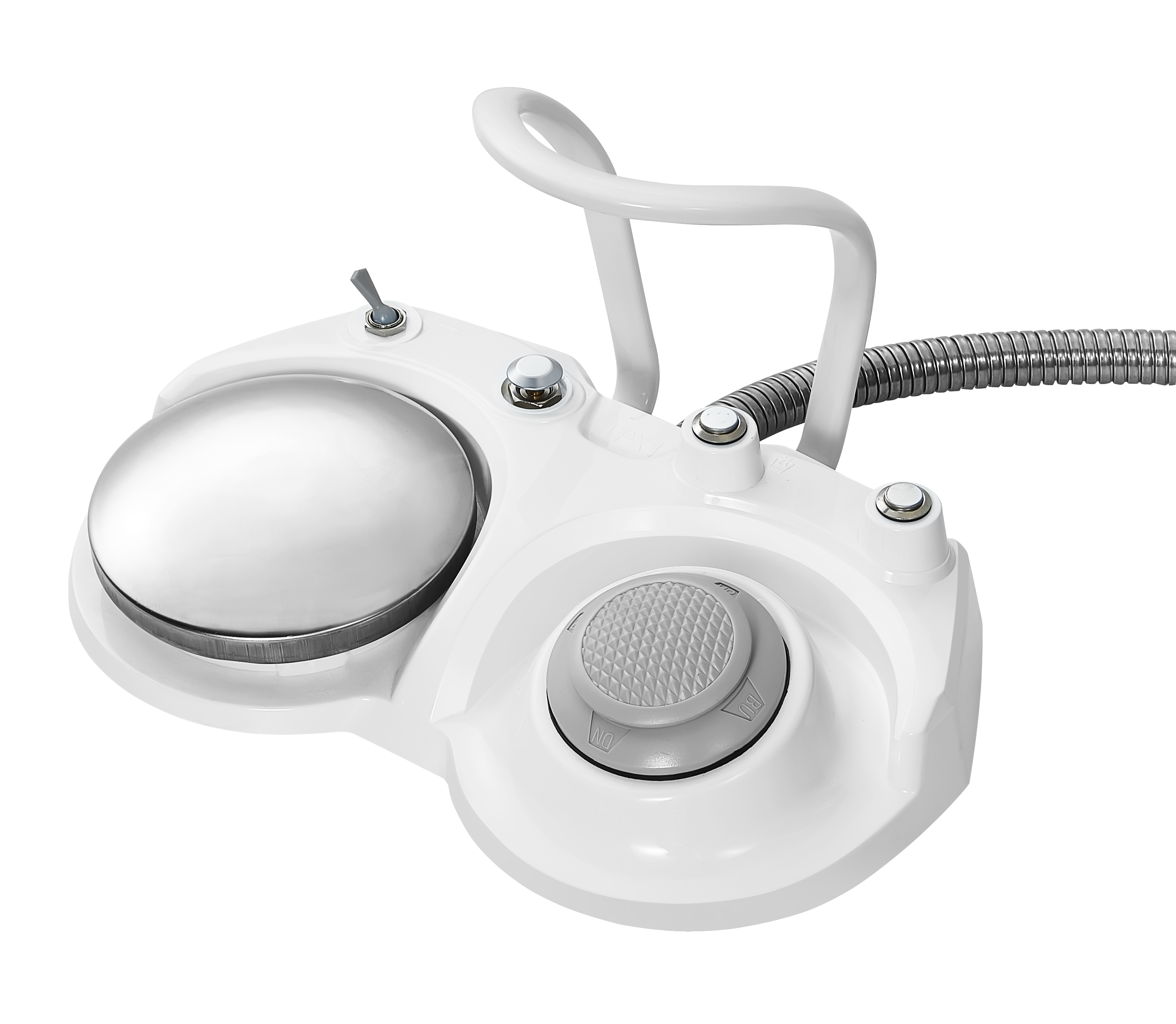

Luxury six-in-one Footpedal
The six-in-one multi-functional operation foot pedal adopts a stainless steel tread design, which can control water and air operation, as well as flushing the spittoon, water supply and the lifting and tilting of the chair. It is also equipped with a stainless steel outer tube for the foot pedal, which is not only wear-resistant but also anti-stepping.

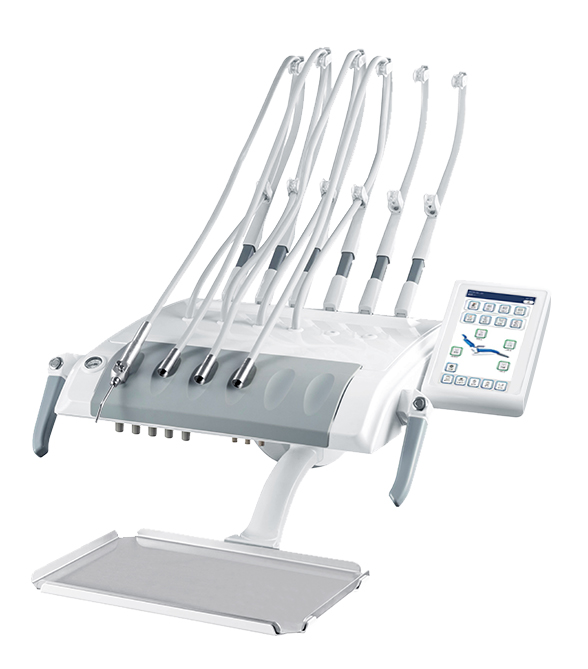

Up mounted instrument tray (Optional accessory)
The Up mounted instrument tray is equipped with 6 pull rods (suitable for high and low-speed mobile phones, dental cleaners, electric motors, and fiber-optic mobile phones), and each pull rod can independently control the fixed position. The bottom-mounted rotating tray is practical and convenient.

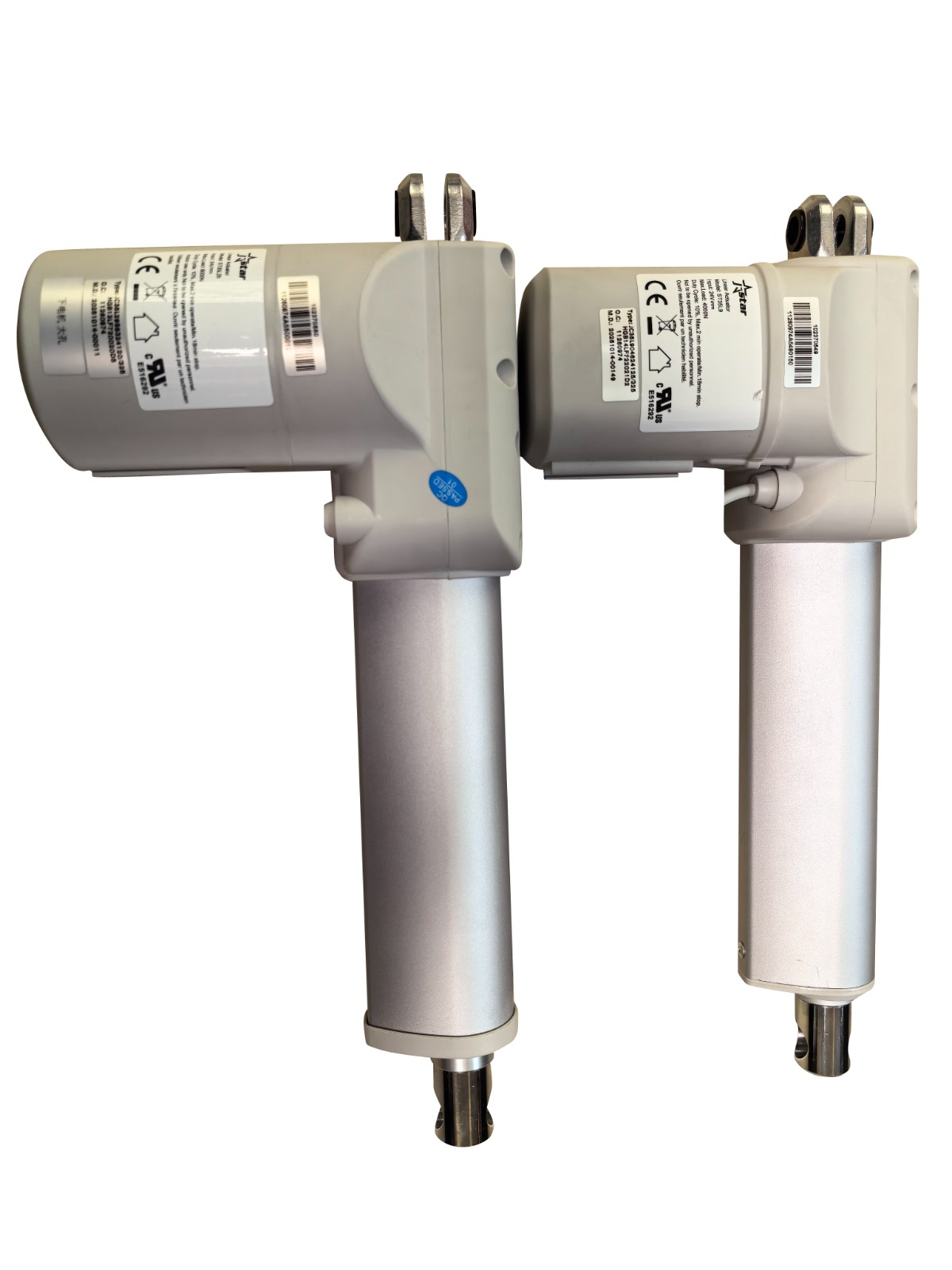

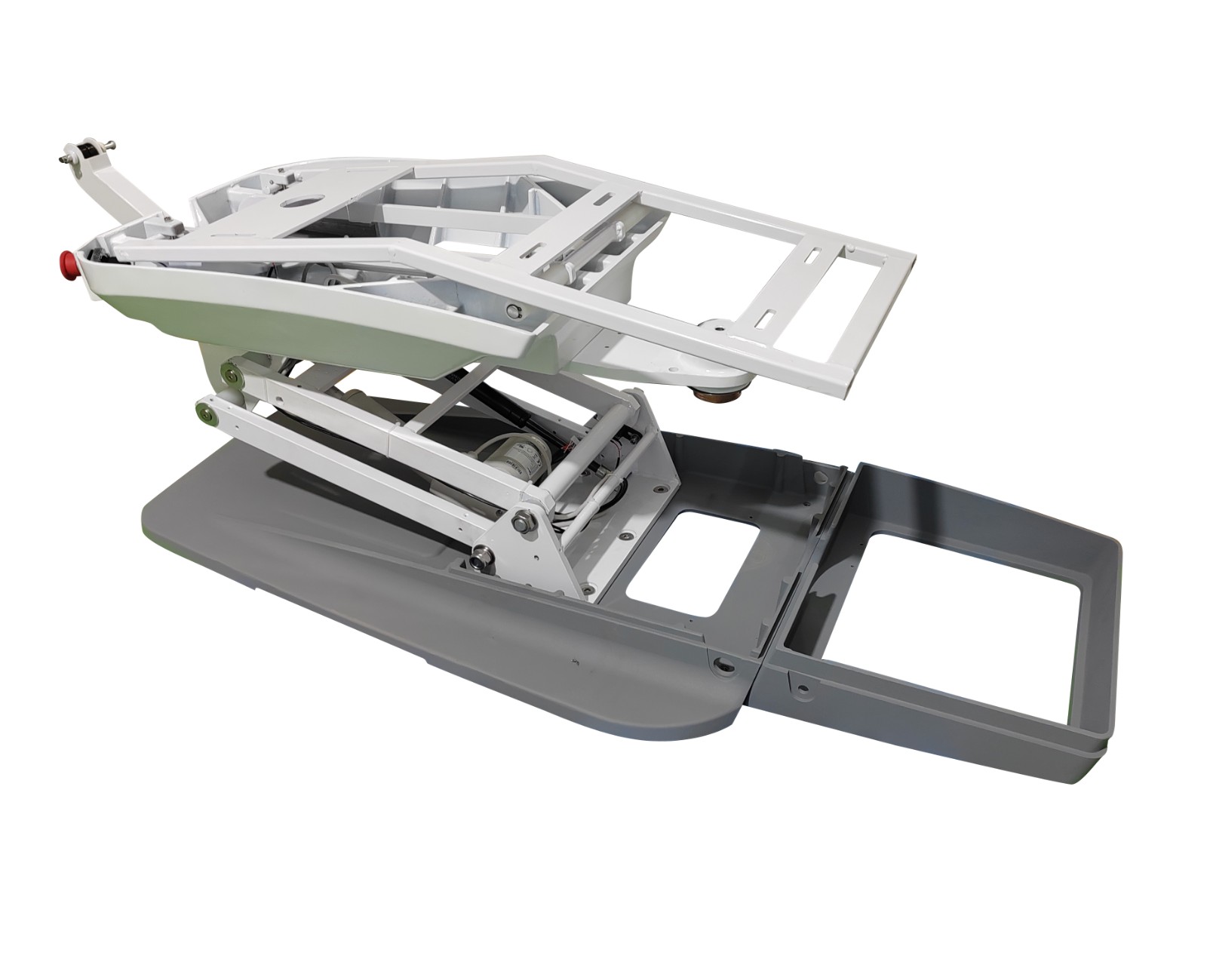

Chair structure
The chair structure adopts a 12MM wide base plate as the support seat, and the net weight of the chair part reaches 115 kilograms, which reduces the degree of shaking during the product's use. In addition, the product also adopts the American J-star brand motor. The lifting motor uses a thrust of 8000 Newtons, and the pitch motor uses a fast thrust of 4000 Newtons. All motors are equipped with pressure-bearing self-locking functions, making the use safer and more reassuring.

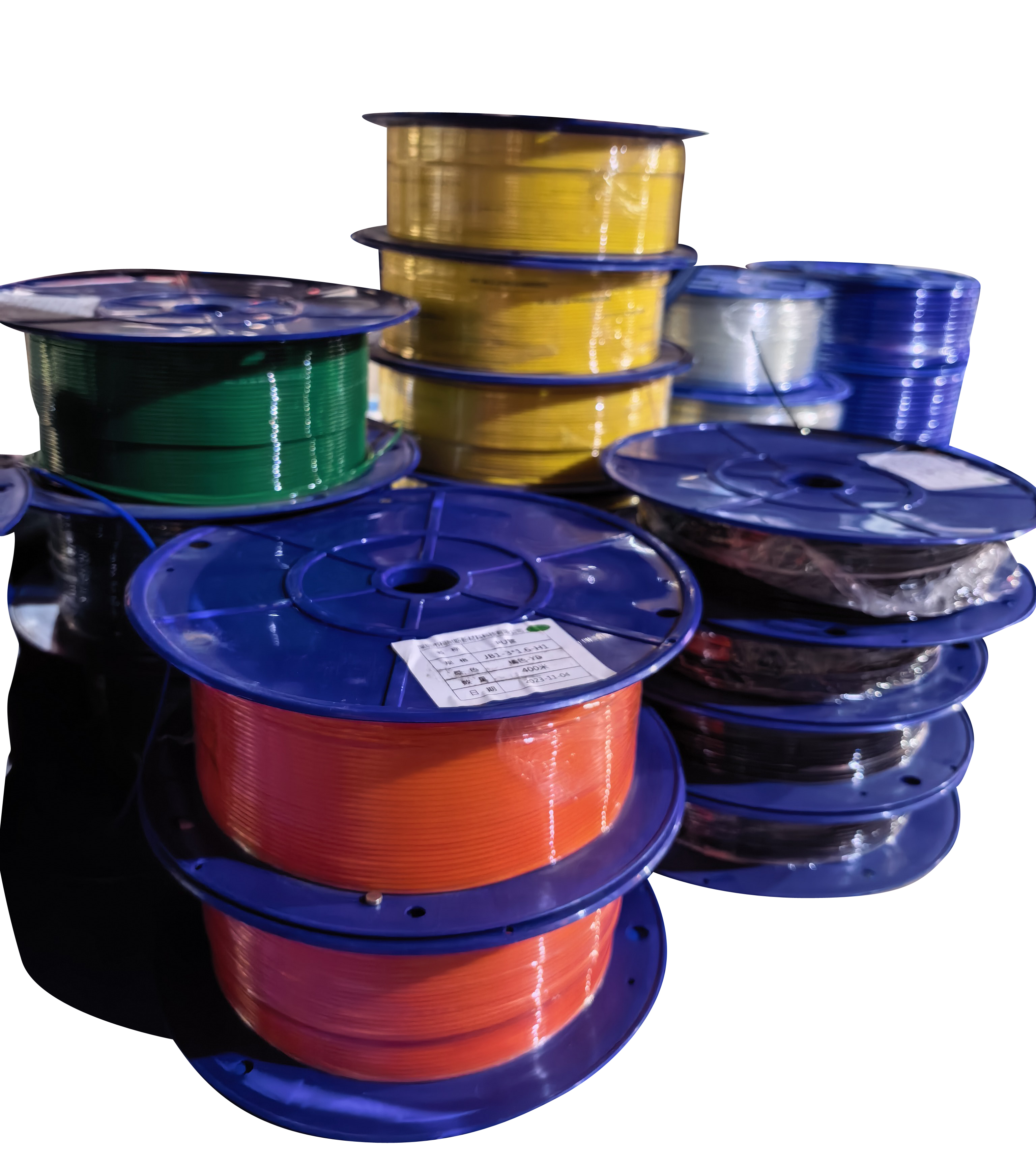

German imported water pipe
The water and gas pipelines of the entire machine are made of raw materials from BASF in Germany, which are more pressure-resistant and anti-aging, and have a service life of 5 to 10 years.
6
Company Profile
Guangdong Yadeng Medical Apparatus Co., Ltd. is a professional manufacturer and service provider of medical equipment, dedicated to providing high-quality services and integrating R&D, manufacturing, and marketing. Our main products include integrated dental units, suction systems, and air compressor. we also act as an agent for the sale of related medical equipment.
Core Strengths and Production Guarantee：We possess approximately 8,000 square meters of standardized production and manufacturing facilities, ensuring stable product production, delivery, and after-sales service.including metalworking workshops, injection molding workshops, PU processing workshops, painting workshops, and product assembly and testing workshops.
Qualifications and Compliance Assurance：We have obtained ISO 13485, CE MDR and US FDA certification, becoming one of the few companies in China dental industry to hold these three certifications.
Cooperation Vision：Sincerely expert to establish long-term, friendly, and mutually beneficial cooperative relationships with you.
