Product Introduction

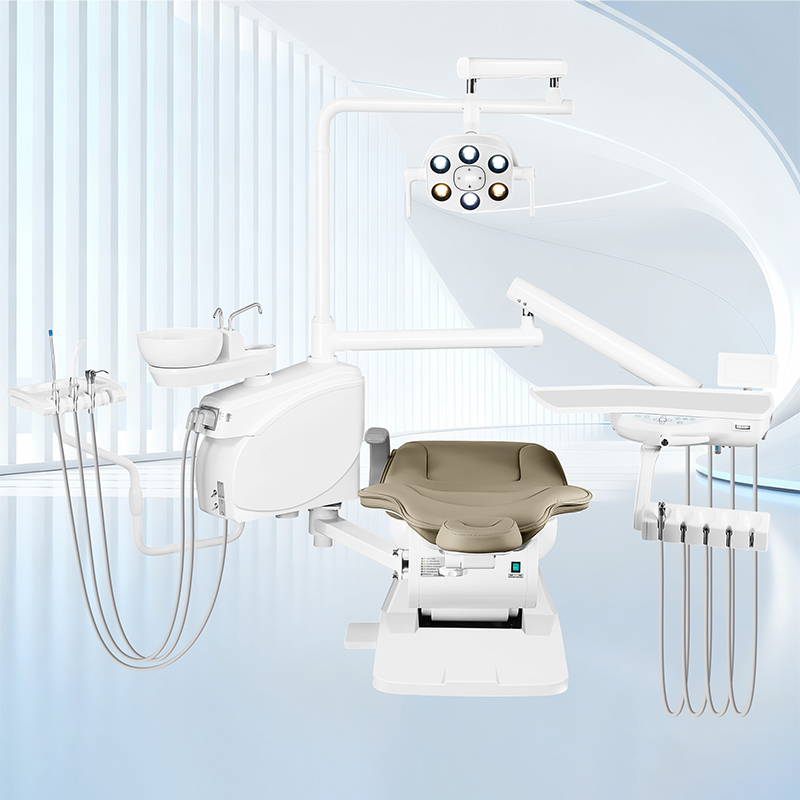

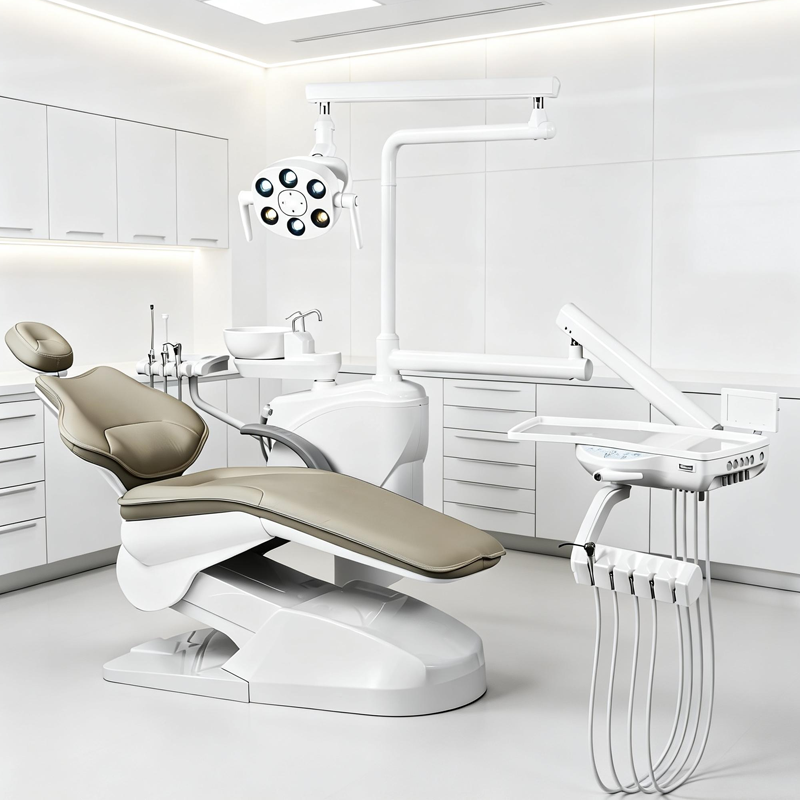

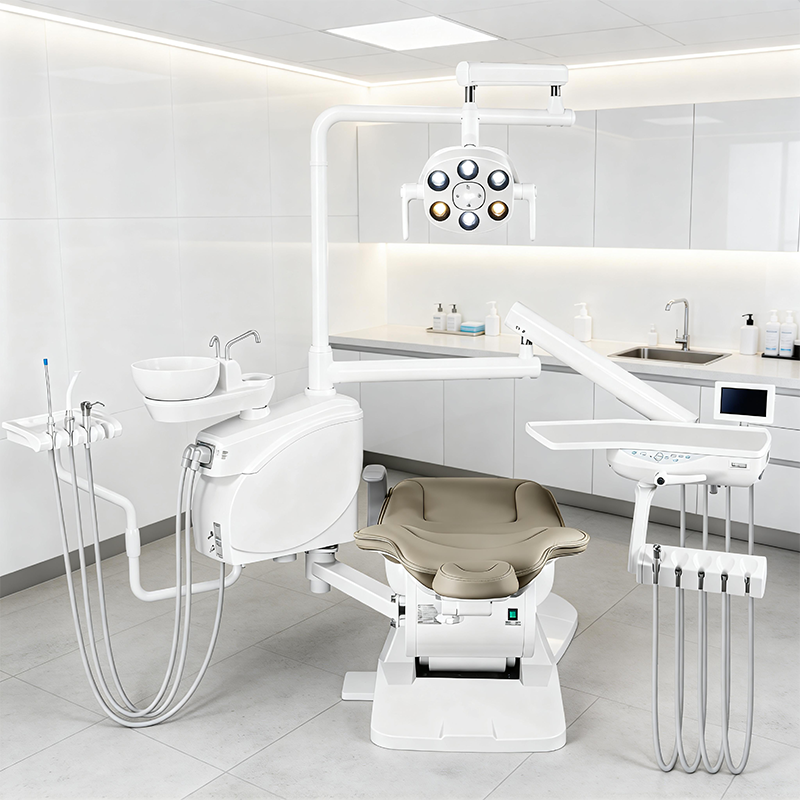

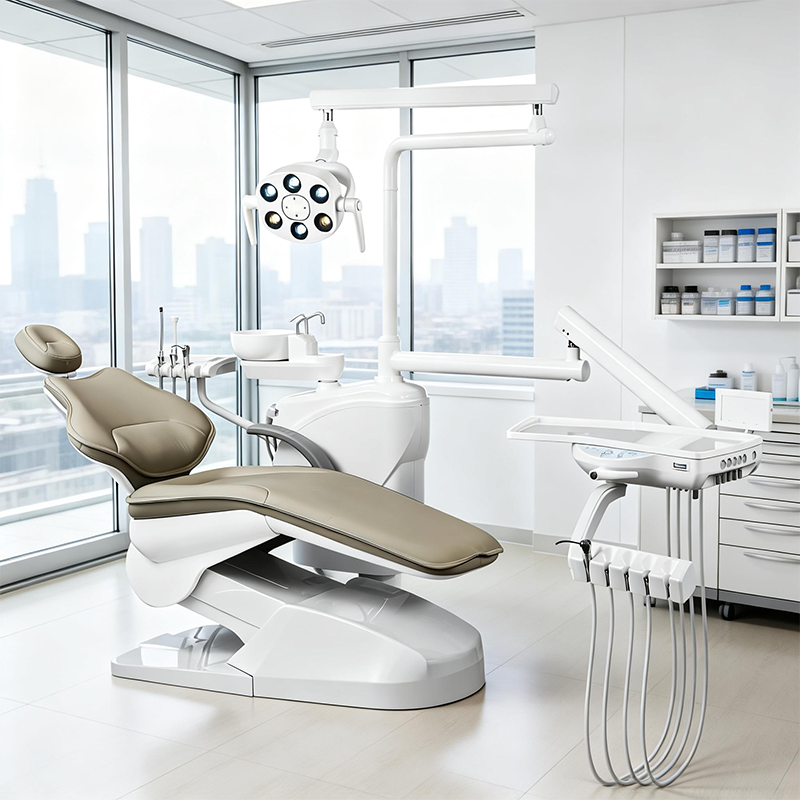

Product Introduction: Model A1 (26) is an economical and practical product. It adopts a wide instrument plate design, and at the same time, the six-position large hanger can rotate 30°. The spacious and skin-friendly seats offer high comfort and have a significant alcohol-resistant disinfection effect. They not only meet the requirements of hygiene and disinfection but also cater to the needs of different patients, demonstrating a focus on patient comfort. The product also adopts a dual-pedal six-in-one multi-functional pedal, achieving the effect of water and gas separation. It also offers a 90° rotatable side box design, greatly achieving a four-handed operation space. The luxury dual-color six-hole oral lamp can be controlled both manually and by sensor. It features a freely adjustable light source to achieve anti-curing function. The illuminance ranges from 3000Lux to 28000Lux, and the color temperature is from 3300K to 5700K.
3
Product Parameters
| 一、Factory Configuration | ||
| No. | QTY | Name |
| 1 | 1set | Electric dental chair |
| 2 | 2pcs | American imported DC silent motor |
| 3 | 2pcs | Domestic solenoid valves |
| 4 | 2pcs | Three-way gun (cold/hot) |
| 5 | 1set | main control system |
| 6 | 1set | Saliva system |
| 7 | 1set | Pure water system |
| 8 | 1pc | LED film viewing light |
| 9 | 1set | Domestic skin-friendly genuine leather cushion |
| 10 | 1set | Nurse chair + doctor chair |
| 11 | 1set | Flushing and water supply systems |
| 12 | 1pc | Luxury Six-Hole LED Oral Light |
| 13 | 1pc | Replaceable instrument tray silicone anti-fouling cover |
| 14 | 1set | Stainless steel 6-in-1 multi-functional foot pedal control |
| 15 | 1set | Multifunctional headrest support |
| 16 | 1set | ceramic spittoon |
| 二、packing parameter | ||
| A1 Star Shine 26 (Standard Configuration)： | ||
| Export Small carton Dimensions: | 1、With legs 129X97X85CM | 2、Without legs 129X97X75CM |
| Export Small carton N.W: | 1、With legs 36KG | 2、Without legs 27.6KG |
| Chair N.W： 160 KG | stool：7.2 KG | |
| Small cartons N.W（With legs）： | 203 KG | Small cartons G.W（Without legs）： 194 KG |
4
Product features and detailed introduction

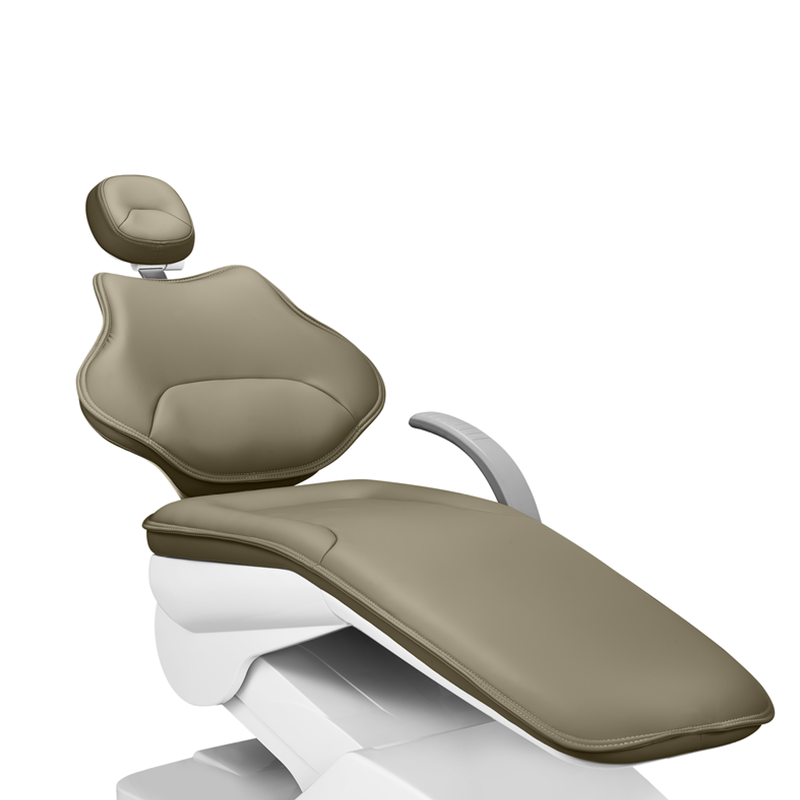

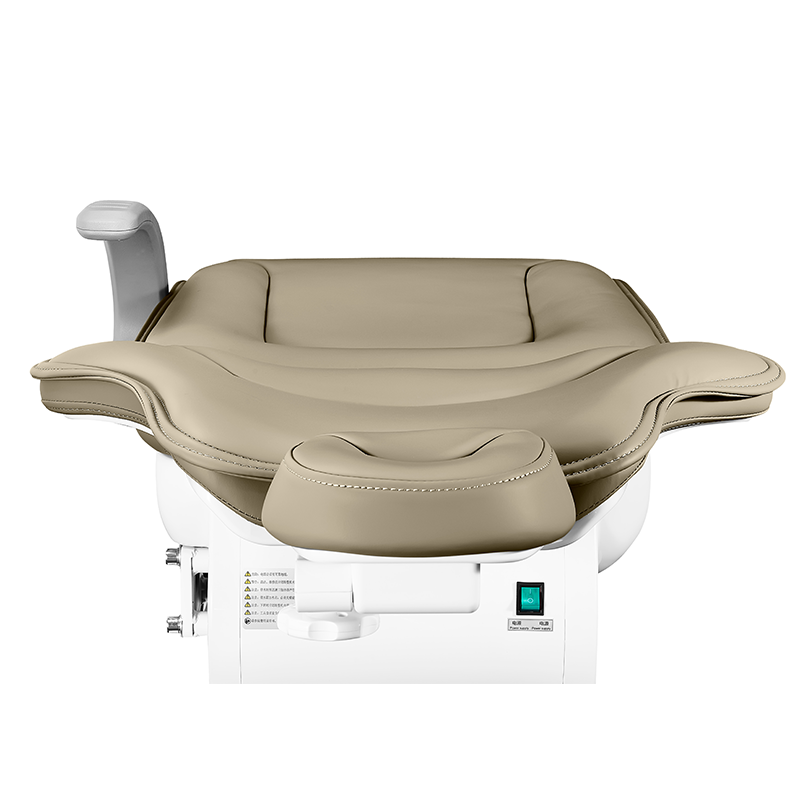

Leather Cushion with Edge Stitching Process
The dental chair's leather cushion utilizes an edge stitching process, resulting in a stronger three-dimensional effect.
enhanced durability, and a premium feel.
Square auxiliary control console
The operation console is equipped with a storage surface, an aluminum strong and weak suction band switch control handle, and a water, gas and mist three-in-one gun. It is also equipped with a secondary control system that can operate the basic functions of the product.
Wide Design Instrument Tray
Large storage area,equipped with a covered transparent plastic cover to effectively prevent liquid spills, The hanger position can be rotated 30°；The clean and tidy piping of the instrument reel, the reasonable layout, and the quality requirements for the products we strive for excellence and meticulousness.
90° Rotating Side Box
The side box is made using injection molding technology, and the box body can be rotated 90°, facilitating fourhanded operation.Our neat layout of the pipelines is elegant and generous, making the product more reasonable in use and maintenance.
Luxury6-LED Dental Light
Features an oval dual-color design (with multi-level adjustment of brightness, color temperature,
etc.), maximum brightness up to 8000-30000 LUX, adjustable color temperature 4500K-9500K, with
both sensor and manual control
Six-in-One Foot Pedal
Dual-control pedal-type six-in-one foot pedal with aluminum alloy buttons.
Chair structure
The chair structure adopts a 12MM wide base plate as the support seat, and the net weight of the chair part reaches 75 kilograms, which reduces the degree of shaking during the product's use. In addition, the product also adopts the American J-star brand motor. The lifting motor uses a thrust of 8000 Newtons, and the pitch motor uses a fast thrust of 4000 Newtons. All motors are equipped with pressure-bearing self-locking functions, making the use safer and more reassuring.

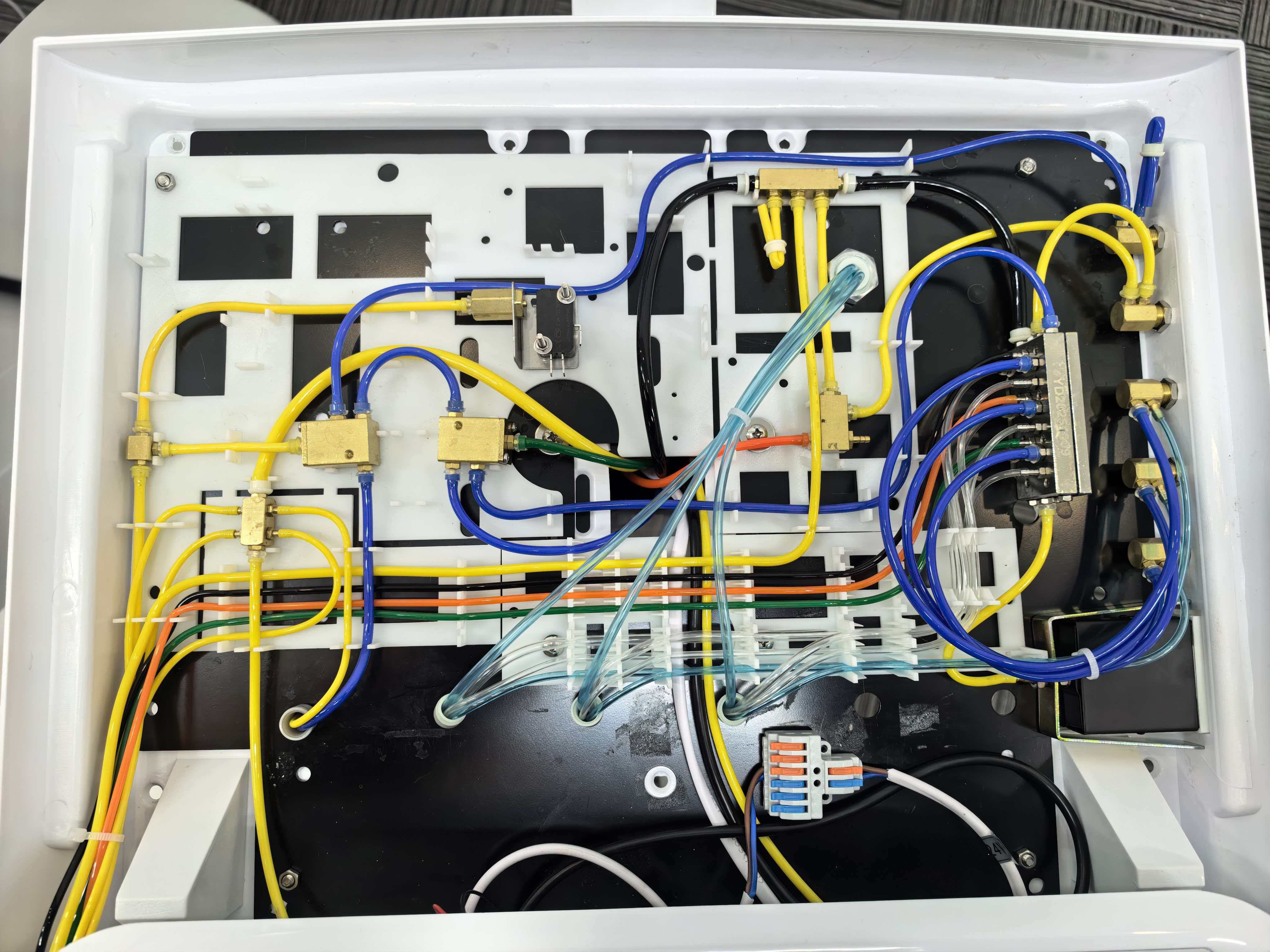

Water and gas pipeline
The water and gas pipelines of the entire machine are made of raw materials from BASF in Germany, which are more pressure-resistant and anti-aging, and have a service life of 5 to 10 years.
6
Company Profile
Guangdong Yadeng Medical Apparatus Co., Ltd. is a professional manufacturer and service provider of medical equipment, dedicated to providing high-quality services and integrating R&D, manufacturing, and marketing. Our main products include integrated dental units, suction systems, and air compressor. we also act as an agent for the sale of related medical equipment.
Core Strengths and Production Guarantee：We possess approximately 8,000 square meters of standardized production and manufacturing facilities, ensuring stable product production, delivery, and after-sales service.including metalworking workshops, injection molding workshops, PU processing workshops, painting workshops, and product assembly and testing workshops.
Qualifications and Compliance Assurance：We have obtained ISO 13485, CE MDR and US FDA certification, becoming one of the few companies in China dental industry to hold these three certifications.
Cooperation Vision：Sincerely expert to establish long-term, friendly, and mutually beneficial cooperative relationships with you.
